Fast EV charging is no longer a luxury — it’s an industry standard. But if you’re sourcing EV infrastructure, you’ve likely heard the term “DC charging pile“ and wondered what exactly it means. In this post, we’ll explain the term clearly and show why it’s a vital component in modern electric vehicle networks.
A DC charging pile is a fast-charging device that delivers direct current (DC) straight to an electric vehicle’s battery. Unlike AC chargers, it bypasses the car’s onboard converter, enabling rapid charging — often reaching 80% in 20–30 minutes. DC charging piles are commonly used in commercial stations, highways, and fleet depots.
Let’s explore how it works, what makes it different from other charging systems, and why it’s a smart investment for EV infrastructure providers.
Table of Contents
How Does a DC Charging Pile Work?
A DC charging pile connects to a three-phase AC power grid and converts that power into direct current through an internal conversion module. It then feeds the DC power directly into an EV’s battery via connectors like CCS2, CCS1, GB/T, or Tesla.
This process bypasses the vehicle’s onboard charger, allowing higher current levels and significantly faster charging speeds — up to 1000kW in some cases.
👉 Key components include:
- Power conversion module (AC to DC)
- Cooling system
- Charging control board
- Display interface for users
- Smart metering & communication modules
What Makes a DC Charging Pile Different from AC Chargers?
| Feature | DC Charging Pile | AC Charging Station |
|---|---|---|
| Power Source | AC (converted to DC inside the charger) | AC (converted by vehicle’s onboard charger) |
| Charging Speed | Fast to ultra-fast (15–45 mins) | Slow to moderate (4–10 hours) |
| Best Use | Highways, fleet hubs, public stations | Homes, offices, low-traffic areas |
| Output Range | 20kW–480kW, up to 1000kW | 3.5kW–22kW |
In short, DC charging piles are all about speed and power — making them ideal for commercial and public-use scenarios.
Where Are DC Charging Piles Typically Installed?
Because of their size, power draw, and cost, DC charging piles are generally installed in:
- Highway rest stops and express charging corridors
- Fleet depots for buses, taxis, delivery vans
- Urban fast-charging hubs
- Corporate campuses and EV charging stations
They are often part of a broader DC charging infrastructure strategy, helping to reduce charging queues and enable quick turnarounds.
What Are the Key Features of a High-Quality DC Charging Pile?
Product quality is non-negotiable. A good DC charging pile should offer:
- High efficiency (≥95%) with smart load management
- Multi-standard compatibility (CCS2, CCS1, GB/T, Tesla)
- Real-time diagnostics via OCPP 1.6/2.0 protocol
- Advanced safety features like surge protection, temperature sensors, and emergency stop
- Durable enclosure (IP54/IP65 rated for outdoor use)
Some models even support triple-gun simultaneous charging, with two DC charging gun and one AC charging gun, ideal for high-traffic locations.
Can DC Charging Piles Be Customized?
Yes — especially when sourced directly from OEM/ODM factories like ours. We offer:
- Power options: 60kW / 80kW/ 120kW / 160kW/ 180kW / 240kW / 360kW/ 480kW and higher+
- Connector type customization: CCS2, CCS1, GB/T, Tesla
- Branding & UI customization (logos, colors, display language)

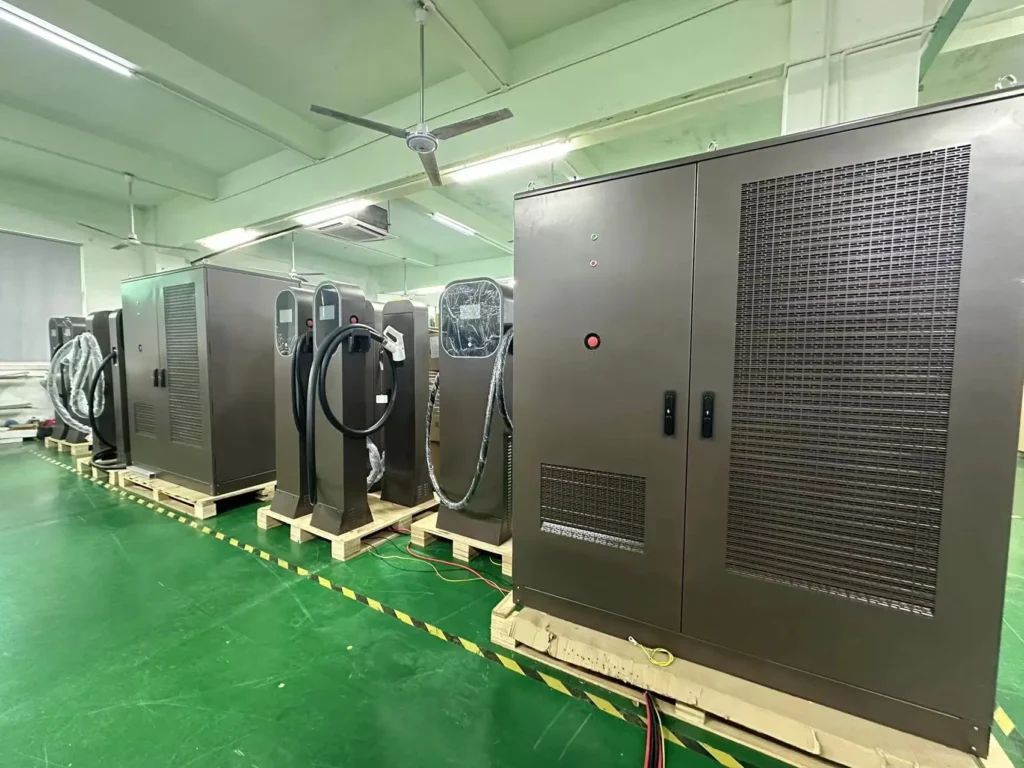

- Outer design customization: Different and outstanding from the standard design
Customization is critical for adapting to different regional regulations, charging protocols, and brand identities.
How Does a DC Charging Pile Fit Into EV Charging Infrastructure?
Think of the DC charging pile as the “muscle” behind fast-charging infrastructure. It’s the powerhouse component that enables:
- Rapid energy transfer
- Higher turnover of vehicles
- Networked charging capabilities
When several piles are deployed together, they form a DC fast charging station, enabling a city or fleet to scale clean transportation quickly and efficiently.
What Should You Consider When Sourcing DC Charging Piles from China?
Here are the key points serious buyers focus on:
- Factory scale & stability (Do they have enough production lines?)
- Export experience to your target markets
- Customization capability for long-term branding
- After-sales & technical support availability

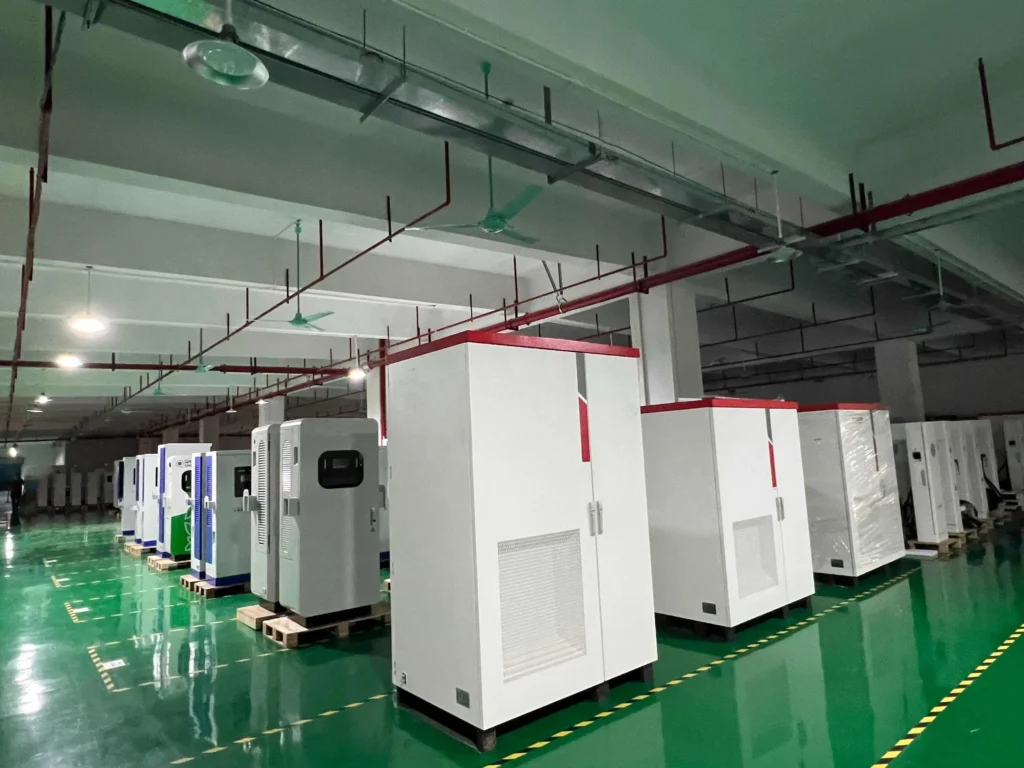

For example, our factory in China has 5 full production lines, supports OEM, ODM, and JDM, and serves distributors in Europe, North America, Australia, Japan, and more. Contact us here if you’d like a spec sheet or free consultation.
Frequently Asked Questions (FAQs)
Q1: Is a DC charging pile the same as a fast charger?
Answer: Yes. DC charging piles are commonly referred to as fast chargers because they deliver high-voltage direct current, enabling quick battery top-ups.
Q2: How fast can a DC charging pile charge an EV?
Answer: Depending on the vehicle and charger rating, a DC pile can deliver 80% charge in 20–40 minutes, especially with 180kW+ units.
Q3: Can DC charging damage the battery?
Answer: Frequent fast charging may slightly reduce battery longevity over time due to heat generation, but modern battery management systems (BMS) minimize this risk.
Q4: Are DC charging piles safe to use outdoors?
Answer: Yes — quality DC charging piles have IP54 or higher weather protection, cooling systems, and built-in surge and temperature safety.
Q5: How much does a DC charging pile cost?
Answer: Pricing depends on power output, features, and customization.
Let’s Power the EV Future Together — Partner with ZinstarEV
At ZinstarEV, we help global distributors, retailers, and energy companies build next-gen EV infrastructure with:
- High-quality DC charging piles, AC EV Chargers, EV Adapters, EV Extension cables etc.
- Full OEM, ODM, and JDM services
- Expert support from inquiry to after-sales
- Proven export experience to Europe, North America, Australia, and beyond
📧 Let’s talk about your next EV project:
