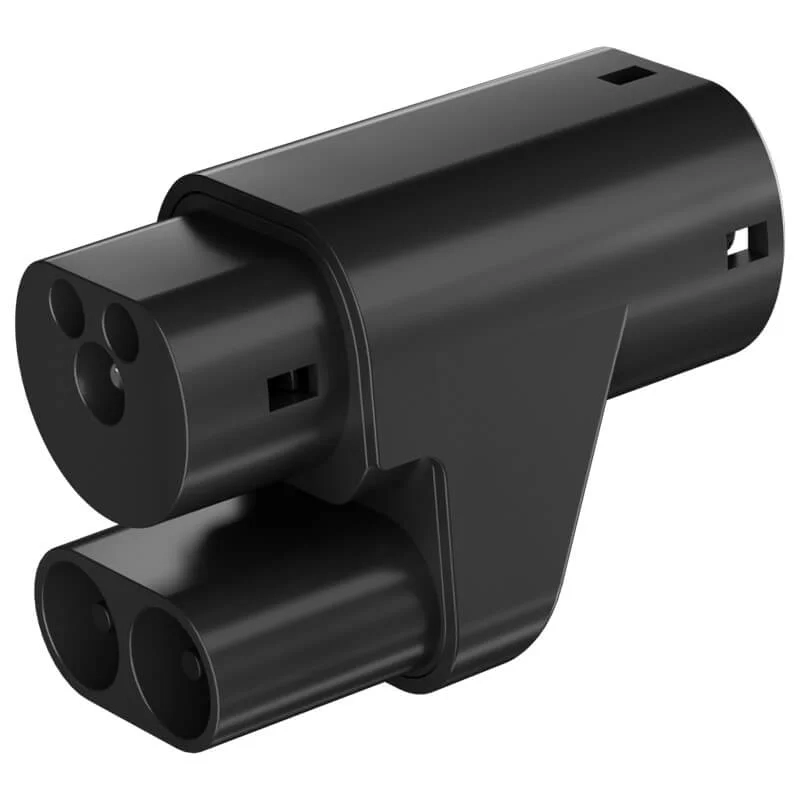

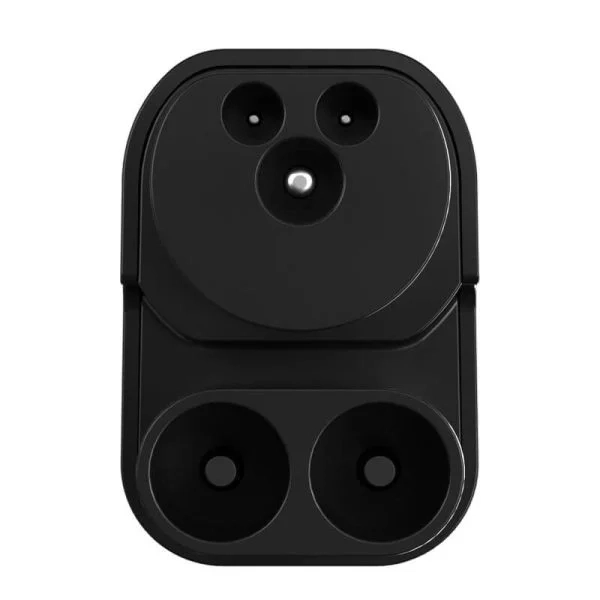

The EV Charger Adapters are ideal for both residential and industrial applications, suited for on-the-go use, including in-car charging, travel-related charging needs, and as a reliable solution for emergency charging scenarios
| Type | Old Euro EV electric vehicle charging at new power station |
|---|---|
| Main Markets | West European |
|
Color |
Black |
Pins |
Copper alloy, silver plated |
|
Rated power |
86KW max |
Service life |
>10000 times |
|
Current |
210A max |
Plastic |
PC+ABS |
|
Operating voltage |
410V DC |
Storage Temperature |
-30°C ~ 50°C |
|
Insulation resistance |
>1000mΩ |
Storage Temperature |
45<F< 80N |
|
Contact resistance |
<5mΩ |
Certification |
CE |
|
Flame retardant grade |
UL94-V0 |
Warranty |
12 months |
|
Operating temperature |
-40°C ~ +85°C |
connector |
CCS2 (DC) |
|
Protection class |
IP54 |
Dual temperature kill switch |
|
